org.jcsp.plugNplay
Class Delta2

java.lang.Object
  org.jcsp.plugNplay.Delta2

All Implemented Interfaces:

CSProcess

public final class Delta2
extends Object
implements CSProcess

This process broadcasts objects arriving on its input channel in parallel to its two output channels.

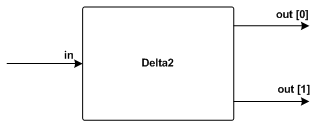

Process Diagram

Description

The Delta2 class is a process which has an infinite loop that waits for Objects of any type to be sent down the in Channel. The process then writes the reference to the Object in parallel down the out0 and out1 Channels.

Channel Protocols

Input Channels
in	java.lang.Object	The in Channel can accept data of any Class.
Output Channels
out0, out1	java.lang.Object	The output Channels will carry a broadcast of whatever is sent down the in Channel.

Author:

P.D.Austin

Constructor Summary

Delta2(ChannelInput in, ChannelOutput out0, ChannelOutput out1)
Construct a new Delta2 process with the input Channel in and the output Channels out0 and out1.

Method Summary

void	run() The main body of this process.

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Constructor Detail

Delta2

public Delta2(ChannelInput in,
              ChannelOutput out0,
              ChannelOutput out1)

Construct a new Delta2 process with the input Channel in and the output Channels out0 and out1. The ordering of the Channels out0 and out1 make no difference to the functionality of this process.

Parameters:

in - the input channel

out0 - an output Channel

out1 - an output Channel

Method Detail

run

public void run()

The main body of this process.

Specified by:

run in interface CSProcess
