org.jcsp.plugNplay.ints
Class SubstituteInt

java.lang.Object
  org.jcsp.plugNplay.ints.SubstituteInt

All Implemented Interfaces:

CSProcess

public final class SubstituteInt
extends Object
implements CSProcess

Substitutes a user-configured constant for each integer in the stream flowing through.

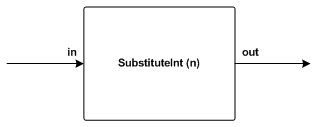

Process Diagram

Description

SubstituteInt is a process that substitutes the (constant) n with which it is configured for everything recieved on its in channel. So, its output stream has constant values but its rate of flow is triggered by its input.

Channel Protocols

Input Channels
in	int	All channels in this package carry integers.
Output Channels
out	int	All channels in this package carry integers.

Author:

P.D.Austin

Constructor Summary

SubstituteInt(ChannelInputInt in, ChannelOutputInt out, int n)
Construct a new SubstituteInt process.

Method Summary

void	run() The main body of this process.

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Constructor Detail

SubstituteInt

public SubstituteInt(ChannelInputInt in,
                     ChannelOutputInt out,
                     int n)

Construct a new SubstituteInt process.

Parameters:

n - the integer to be sent down the out Channel.

in - the input Channel

out - the output Channel

Method Detail

run

public void run()

The main body of this process.

Specified by:

run in interface CSProcess
