org.jcsp.awt
Class ActiveDialog

java.lang.Object
  java.awt.Component
      java.awt.Container
          java.awt.Window
              java.awt.Dialog
                  org.jcsp.awt.ActiveDialog

All Implemented Interfaces:

ImageObserver, MenuContainer, Serializable, Accessible, CSProcess

public class ActiveDialog
extends Dialog
implements CSProcess

java.awt.Dialog with a channel interface.

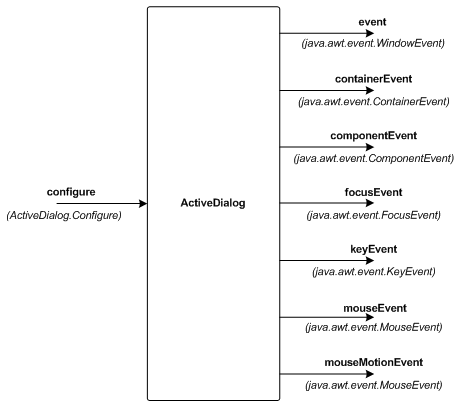

Process Diagram

Description

ActiveDialog is a process extension of java.awt.Dialog with channels for run-time configuration and event notification. The event channels should be connected to one or more application-specific server processes (instead of registering a passive object as a Listener to this component).

All channels are optional. The configure and event channels are settable from a constructor. The event channel delivers a WindowEvent whenever one is generated on the ActiveDialog. Other event channels can be added to notify the occurrence of any other events the component generates (by calling the appropriate addXXXEventChannel method before the process is run). Messages can be sent down the configure channel at any time to configure the component. See the table below for details.

All channels are managed by independent internal handler processes. It is, therefore, safe for a serial application process both to service an event channel and configure the component – no deadlock can occur.

IMPORTANT: it is essential that event channels from this process are always serviced – otherwise the Java Event Thread will be blocked and the GUI will stop responding. A simple way to guarantee this is to use channels configured with overwriting buffers. For example:

   final One2OneChannel myMouseEvent = Channel.one2one (new OverWriteOldestBuffer (n));

   final ActiveDialog myDialog = new ActiveDialog ();
   myDialog.addMouseEventChannel (myMouseEvent.out ());


This will ensure that the Java Event Thread will never be blocked. Slow or inattentive readers may miss rapidly generated events, but the n most recent events will always be available.

Channel Protocols

Input Channels
configure	Boolean	If this is the Boolean.TRUE object, the dialog is made visible If this is the Boolean.FALSE object, the dialog is made invisible Other Boolean objects are ignored
	ActiveDialog.Configure	Invoke the user-defined Configure.configure method on the dialog.
Output Channels
event	WindowEvent	The WindowEvent generated by the component
containerEvent	ContainerEvent	See the addContainerEventChannel method.
componentEvent	ComponentEvent	See the addComponentEventChannel method.
focusEvent	FocusEvent	See the addFocusEventChannel method.
keyEvent	KeyEvent	See the addKeyEventChannel method.
mouseEvent	MouseEvent	See the addMouseEventChannel method.
mouseMotionEvent	MouseEvent	See the addMouseMotionEventChannel method.

Example

 import java.awt.*;
 import java.awt.event.*;
 import org.jcsp.lang.*;
 import org.jcsp.util.*;
 import org.jcsp.awt.*;

 public class ActiveDialogExample {

   public static void main (String argv[]) {

     final Frame root = new Frame ();

     final One2OneChannel event = Channel.one2one (new OverWriteOldestBuffer (10));

     final ActiveDialog dialog = new ActiveDialog (null, event.out (), root, "ActiveDialog Example");

     dialog.setSize (300, 200);
     dialog.setVisible (true);

     new Parallel (
       new CSProcess[] {
         dialog,
         new CSProcess () {
           public void run () {
             while (true) {
               WindowEvent w = (WindowEvent) event.in ().read ();
               System.out.println (w);
             }
           }
         }
       }
     ).run ();
   }

 }


Author:

P.D. Austin and P.H. Welch

See Also:

Dialog, ContainerEvent, ComponentEvent, FocusEvent, KeyEvent, MouseEvent, OverWriteOldestBuffer, Serialized Form

Nested Class Summary

static interface

ActiveDialog.Configure This enables general configuration of this component.

Nested classes/interfaces inherited from class java.awt.Dialog

Dialog.AccessibleAWTDialog

Nested classes/interfaces inherited from class java.awt.Window

Window.AccessibleAWTWindow

Nested classes/interfaces inherited from class java.awt.Container

Container.AccessibleAWTContainer

Nested classes/interfaces inherited from class java.awt.Component

Component.AccessibleAWTComponent, Component.BltBufferStrategy, Component.FlipBufferStrategy

Field Summary

Fields inherited from class java.awt.Component

BOTTOM_ALIGNMENT, CENTER_ALIGNMENT, LEFT_ALIGNMENT, RIGHT_ALIGNMENT, TOP_ALIGNMENT

Fields inherited from interface java.awt.image.ImageObserver

ABORT, ALLBITS, ERROR, FRAMEBITS, HEIGHT, PROPERTIES, SOMEBITS, WIDTH

Constructor Summary

ActiveDialog(ChannelInput configure, ChannelOutput event, Frame parent)
Constructs a new non-modal ActiveDialog with a blank title.

ActiveDialog(ChannelInput configure, ChannelOutput event, Frame parent, boolean modal)
Constructs a new ActiveDialog with a blank title.

ActiveDialog(ChannelInput configure, ChannelOutput event, Frame parent, String title)
Constructs a new non-modal ActiveDialog.

ActiveDialog(ChannelInput configure, ChannelOutput event, Frame parent, String title, boolean modal)
Constructs a new ActiveDialog.

ActiveDialog(Frame parent)
Constructs a new non-modal ActiveDialog with a blank title and no configuration or event channels.

ActiveDialog(Frame parent, boolean modal)
Constructs a new ActiveDialog with a blank title and no configuration or event channels.

ActiveDialog(Frame parent, String title)
Constructs a new non-modal ActiveDialog with no configuration or event channels.

ActiveDialog(Frame parent, String title, boolean modal)
Constructs a new ActiveDialog with no configuration or event channels.

Method Summary

void	addComponentEventChannel(ChannelOutput componentEvent) Add a new channel to this component that will be used to notify that a ComponentEvent has occurred.
void	addContainerEventChannel(ChannelOutput containerEvent) Add a new channel to this component that will be used to notify that a ContainerEvent has occurred.
void	addFocusEventChannel(ChannelOutput focusEvent) Add a new channel to this component that will be used to notify that a FocusEvent has occurred.
void	addKeyEventChannel(ChannelOutput keyEvent) Add a new channel to this component that will be used to notify that a KeyEvent has occurred.
void	addMouseEventChannel(ChannelOutput mouseEvent) Add a new channel to this component that will be used to notify that a MouseEvent has occurred.
void	addMouseMotionEventChannel(ChannelOutput mouseMotionEvent) Add a new channel to this component that will be used to notify that a MouseMotionEvent has occurred.
void	run() The main body of this process.
void	setConfigureChannel(ChannelInput configure) Sets the configuration channel for this ActiveDialog.

Methods inherited from class java.awt.Dialog

addNotify, getAccessibleContext, getTitle, hide, isModal, isResizable, isUndecorated, paramString, setModal, setResizable, setTitle, setUndecorated, show

Methods inherited from class java.awt.Window

addPropertyChangeListener, addPropertyChangeListener, addWindowFocusListener, addWindowListener, addWindowStateListener, applyResourceBundle, applyResourceBundle, createBufferStrategy, createBufferStrategy, dispose, finalize, getBufferStrategy, getFocusableWindowState, getFocusCycleRootAncestor, getFocusOwner, getFocusTraversalKeys, getGraphicsConfiguration, getInputContext, getListeners, getLocale, getMostRecentFocusOwner, getOwnedWindows, getOwner, getToolkit, getWarningString, getWindowFocusListeners, getWindowListeners, getWindowStateListeners, isActive, isAlwaysOnTop, isFocusableWindow, isFocusCycleRoot, isFocused, isLocationByPlatform, isShowing, pack, postEvent, processEvent, processWindowEvent, processWindowFocusEvent, processWindowStateEvent, removeWindowFocusListener, removeWindowListener, removeWindowStateListener, setAlwaysOnTop, setBounds, setCursor, setFocusableWindowState, setFocusCycleRoot, setLocationByPlatform, setLocationRelativeTo, toBack, toFront

Methods inherited from class java.awt.Container

add, add, add, add, add, addContainerListener, addImpl, applyComponentOrientation, areFocusTraversalKeysSet, countComponents, deliverEvent, doLayout, findComponentAt, findComponentAt, getAlignmentX, getAlignmentY, getComponent, getComponentAt, getComponentAt, getComponentCount, getComponents, getComponentZOrder, getContainerListeners, getFocusTraversalPolicy, getInsets, getLayout, getMaximumSize, getMinimumSize, getMousePosition, getPreferredSize, insets, invalidate, isAncestorOf, isFocusCycleRoot, isFocusTraversalPolicyProvider, isFocusTraversalPolicySet, layout, list, list, locate, minimumSize, paint, paintComponents, preferredSize, print, printComponents, processContainerEvent, remove, remove, removeAll, removeContainerListener, removeNotify, setComponentZOrder, setFocusTraversalKeys, setFocusTraversalPolicy, setFocusTraversalPolicyProvider, setFont, setLayout, transferFocusBackward, transferFocusDownCycle, update, validate, validateTree

Methods inherited from class java.awt.Component

action, add, addComponentListener, addFocusListener, addHierarchyBoundsListener, addHierarchyListener, addInputMethodListener, addKeyListener, addMouseListener, addMouseMotionListener, addMouseWheelListener, bounds, checkImage, checkImage, coalesceEvents, contains, contains, createImage, createImage, createVolatileImage, createVolatileImage, disable, disableEvents, dispatchEvent, enable, enable, enableEvents, enableInputMethods, firePropertyChange, firePropertyChange, firePropertyChange, firePropertyChange, firePropertyChange, firePropertyChange, firePropertyChange, firePropertyChange, firePropertyChange, getBackground, getBounds, getBounds, getColorModel, getComponentListeners, getComponentOrientation, getCursor, getDropTarget, getFocusListeners, getFocusTraversalKeysEnabled, getFont, getFontMetrics, getForeground, getGraphics, getHeight, getHierarchyBoundsListeners, getHierarchyListeners, getIgnoreRepaint, getInputMethodListeners, getInputMethodRequests, getKeyListeners, getLocation, getLocation, getLocationOnScreen, getMouseListeners, getMouseMotionListeners, getMousePosition, getMouseWheelListeners, getName, getParent, getPeer, getPropertyChangeListeners, getPropertyChangeListeners, getSize, getSize, getTreeLock, getWidth, getX, getY, gotFocus, handleEvent, hasFocus, imageUpdate, inside, isBackgroundSet, isCursorSet, isDisplayable, isDoubleBuffered, isEnabled, isFocusable, isFocusOwner, isFocusTraversable, isFontSet, isForegroundSet, isLightweight, isMaximumSizeSet, isMinimumSizeSet, isOpaque, isPreferredSizeSet, isValid, isVisible, keyDown, keyUp, list, list, list, location, lostFocus, mouseDown, mouseDrag, mouseEnter, mouseExit, mouseMove, mouseUp, move, nextFocus, paintAll, prepareImage, prepareImage, printAll, processComponentEvent, processFocusEvent, processHierarchyBoundsEvent, processHierarchyEvent, processInputMethodEvent, processKeyEvent, processMouseEvent, processMouseMotionEvent, processMouseWheelEvent, remove, removeComponentListener, removeFocusListener, removeHierarchyBoundsListener, removeHierarchyListener, removeInputMethodListener, removeKeyListener, removeMouseListener, removeMouseMotionListener, removeMouseWheelListener, removePropertyChangeListener, removePropertyChangeListener, repaint, repaint, repaint, repaint, requestFocus, requestFocus, requestFocusInWindow, requestFocusInWindow, reshape, resize, resize, setBackground, setBounds, setComponentOrientation, setDropTarget, setEnabled, setFocusable, setFocusTraversalKeysEnabled, setForeground, setIgnoreRepaint, setLocale, setLocation, setLocation, setMaximumSize, setMinimumSize, setName, setPreferredSize, setSize, setSize, setVisible, show, size, toString, transferFocus, transferFocusUpCycle

Methods inherited from class java.lang.Object

clone, equals, getClass, hashCode, notify, notifyAll, wait, wait, wait

Constructor Detail

ActiveDialog

public ActiveDialog(Frame parent)

Constructs a new non-modal ActiveDialog with a blank title and no configuration or event channels.

Parameters:

parent - the parent frame for the dialog.

ActiveDialog

public ActiveDialog(Frame parent,
                    boolean modal)

Constructs a new ActiveDialog with a blank title and no configuration or event channels.

Parameters:

parent - the parent frame for the dialog.

modal - if true, dialog blocks input to the parent window when shown.

ActiveDialog

public ActiveDialog(Frame parent,
                    String title)

Constructs a new non-modal ActiveDialog with no configuration or event channels.

Parameters:

parent - the parent frame for the dialog.

title - the title of the dialog.

ActiveDialog

public ActiveDialog(Frame parent,
                    String title,
                    boolean modal)

Constructs a new ActiveDialog with no configuration or event channels.

Parameters:

parent - the parent frame for the dialog.

title - the title of the dialog.

modal - if true, dialog blocks input to the parent window when shown.

ActiveDialog

public ActiveDialog(ChannelInput configure,
                    ChannelOutput event,
                    Frame parent)

Constructs a new non-modal ActiveDialog with a blank title.

Parameters:

configure - the channel for configuration events (can be null if no configuration is required).

event - the WindowEvent will be output whenever it occurs (can be null if no notification is required).

parent - the parent frame for the dialog.

ActiveDialog

public ActiveDialog(ChannelInput configure,
                    ChannelOutput event,
                    Frame parent,
                    boolean modal)

Constructs a new ActiveDialog with a blank title.

Parameters:

configure - the channel for configuration events (can be null if no configuration is required).

event - the WindowEvent will be output whenever it occurs (can be null if no notification is required).

parent - the parent frame for the dialog.

modal - if true, dialog blocks input to the parent window when shown.

ActiveDialog

public ActiveDialog(ChannelInput configure,
                    ChannelOutput event,
                    Frame parent,
                    String title)

Constructs a new non-modal ActiveDialog.

Parameters:

configure - the channel for configuration events (can be null if no configuration is required).

event - the WindowEvent will be output whenever it occurs (can be null if no notification is required).

parent - the parent frame for the dialog.

title - the title of the dialog.

ActiveDialog

public ActiveDialog(ChannelInput configure,
                    ChannelOutput event,
                    Frame parent,
                    String title,
                    boolean modal)

Constructs a new ActiveDialog.

Parameters:

configure - the channel for configuration events (can be null if no configuration is required).

event - the WindowEvent will be output whenever it occurs (can be null if no notification is required).

parent - the parent frame for the dialog.

title - the title of the dialog.

modal - if true, dialog blocks input to the parent window when shown.

Method Detail

setConfigureChannel

public void setConfigureChannel(ChannelInput configure)

Sets the configuration channel for this ActiveDialog. This method overwrites any configuration channel set in the constructor.

Parameters:

configure - the channel for configuration events (can be null if no configuration is required).

addContainerEventChannel

public void addContainerEventChannel(ChannelOutput containerEvent)

Add a new channel to this component that will be used to notify that a ContainerEvent has occurred. This should be used instead of registering a ContainerListener with the component. It is possible to add more than one Channel by calling this method multiple times If the channel passed is null, no action will be taken.

NOTE: This method must be called before this process is run.

Parameters:

containerEvent - the channel down which to send ContainerEvents.

addComponentEventChannel

public void addComponentEventChannel(ChannelOutput componentEvent)

Add a new channel to this component that will be used to notify that a ComponentEvent has occurred. This should be used instead of registering a ComponentListener with the component. It is possible to add more than one Channel by calling this method multiple times If the channel passed is null, no action will be taken.

NOTE: This method must be called before this process is run.

Parameters:

componentEvent - the channel down which to send ComponentEvents.

addFocusEventChannel

public void addFocusEventChannel(ChannelOutput focusEvent)

Add a new channel to this component that will be used to notify that a FocusEvent has occurred. This should be used instead of registering a FocusListener with the component. It is possible to add more than one Channel by calling this method multiple times If the channel passed is null, no action will be taken.

NOTE: This method must be called before this process is run.

Parameters:

focusEvent - the channel down which to send FocusEvents.

addKeyEventChannel

public void addKeyEventChannel(ChannelOutput keyEvent)

Add a new channel to this component that will be used to notify that a KeyEvent has occurred. This should be used instead of registering a KeyListener with the component. It is possible to add more than one Channel by calling this method multiple times If the channel passed is null, no action will be taken.

NOTE: This method must be called before this process is run.

Parameters:

keyEvent - the channel down which to send KeyEvents.

addMouseEventChannel

public void addMouseEventChannel(ChannelOutput mouseEvent)

Add a new channel to this component that will be used to notify that a MouseEvent has occurred. This should be used instead of registering a MouseListener with the component. It is possible to add more than one Channel by calling this method multiple times If the channel passed is null, no action will be taken.

NOTE: This method must be called before this process is run.

Parameters:

mouseEvent - the channel down which to send MouseEvents.

addMouseMotionEventChannel

public void addMouseMotionEventChannel(ChannelOutput mouseMotionEvent)

Add a new channel to this component that will be used to notify that a MouseMotionEvent has occurred. This should be used instead of registering a MouseMotionListener with the component. It is possible to add more than one Channel by calling this method multiple times If the channel passed is null, no action will be taken.

NOTE: This method must be called before this process is run.

Parameters:

mouseMotionEvent - the channel down which to send MouseMotionEvents.

run

public void run()

The main body of this process.

Specified by:

run in interface CSProcess
