org.jcsp.plugNplay.ints
Class FixedDelayInt

java.lang.Object
  extended by org.jcsp.plugNplay.ints.FixedDelayInt
All Implemented Interfaces:
CSProcess

public final class FixedDelayInt
extends Object
implements CSProcess

This holds on to data from its input channel for a fixed delay before passing it on to its output channel.

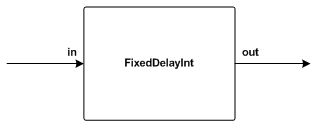

Process Diagram

Description

FixedDelayInt is a process that delays passing on input to its output by a constant delay.

Channel Protocols

Input Channels
in int All channels in this package carry integers.
Output Channels
out int All channels in this package carry integers.

Author:
P.H. Welch and P.D. Austin
See Also:
RegulateInt, RegularInt

Constructor Summary
FixedDelayInt(long delayTime, ChannelInputInt in, ChannelOutputInt out)
          Construct a new FixedDelayInt process with the input Channel in and the output Channel out.

Method Summary
 void run()
          The main body of this process.

Methods inherited from class java.lang.Object
clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait


Constructor Detail

FixedDelayInt

public FixedDelayInt(long delayTime,
                     ChannelInputInt in,
                     ChannelOutputInt out)
Construct a new FixedDelayInt process with the input Channel in and the output Channel out.

Parameters:
delayTime - the time the process is to wait in milliseconds between receiving a message and then sending it (a negative delayTime implies no waiting).
in - the input Channel
out - the output Channel
Method Detail

run

public void run()
The main body of this process.

Specified by:
run in interface CSProcess
