org.jcsp.plugNplay.ints
Class DemultiplexInt

java.lang.Object
  extended by org.jcsp.plugNplay.ints.DemultiplexInt
All Implemented Interfaces:
CSProcess

public final class DemultiplexInt
extends Object
implements CSProcess

This demultiplexes data from its input channel to its output channel array.

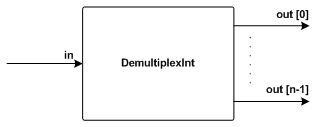

Process Diagram

Description

DemultiplexInt is a process to convert the single stream of ints sent from a MultiplexInt process on the other end of its in channel back to separate streams (its out channels). It assumes that MultiplexInt operates on the same size array of channels as its out array.

The protocol on the incoming multiplexed stream consists of an int, that represents the channel identity of the multiplexed data, followed by the multiplexed data.

Channel Protocols

Input Channels
in int, int An in message is an index followed by the multiplexed data.
Output Channels
out[] java.lang.Object All channels in this package carry integers.

Author:
P.H. Welch and P.D. Austin
See Also:
MultiplexInt, ParaplexInt, DeparaplexInt

Constructor Summary
DemultiplexInt(ChannelInputInt in, ChannelOutputInt[] out)
          Construct a new DemultiplexInt process with the input Channel in and the output Channels out.

Method Summary
 void run()
          The main body of this process.

Methods inherited from class java.lang.Object
clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait


Constructor Detail

DemultiplexInt

public DemultiplexInt(ChannelInputInt in,
                      ChannelOutputInt[] out)
Construct a new DemultiplexInt process with the input Channel in and the output Channels out. The ordering of the Channels in the out array make no difference to the functionality of this process.

Parameters:
in - the input channel
out - the output Channels
Method Detail

run

public void run()
The main body of this process.

Specified by:
run in interface CSProcess
