org.jcsp.plugNplay.ints
Class MultiplexInt

java.lang.Object
  org.jcsp.plugNplay.ints.MultiplexInt

All Implemented Interfaces:

CSProcess

public final class MultiplexInt
extends Object
implements CSProcess

Fair multiplexes its input integer stream array into one output stream (carrying source channel and data pairs).

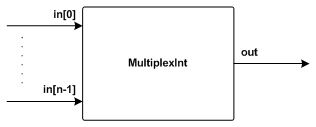

Process Diagram

Description

MultiplexInt is a process to convert multiple streams of ints to a single stream in such a way that it can be de-multiplexed later. The protocol on the outgoing multiplexed stream consists of an int, that represents the channel identity of the multiplexed data, followed by the multiplexed data.

The ordering of the channels in the in array makes no difference to the functionality of this process -- the multiplexing services all channels fairly.

Channel Protocols

Input Channels
in[]	int	All channels in this package carry integers.
Output Channels
out	int, int	An out message is an index followed by the multiplexed data.

Example

The following example shows how to use MultiplexInt in a small program.

 import org.jcsp.lang.*;
 import org.jcsp.plugNplay.ints.*;

 public class MultiplexIntExample {

   public static void main (String[] argv) {

     final One2OneChannelInt[] a = Channel.one2oneIntArray (3);
     final One2OneChannelInt b = Channel.one2oneInt ();

     new Parallel (
       new CSProcess[] {
         new NumbersInt (a[0].out ()),
         new FibonacciInt (a[1].out ()),
         new SquaresInt (a[2].out ()),
         new MultiplexInt (Channel.getInputArray (a), b.out ()),
         new CSProcess () {
           public void run () {
             String[] key = {"Numbers ",
                             "            Fibonacci ",
                             "                          Squares "};
             while (true) {
               System.out.print (key[b.in ().read ()]);   // print channel source
               System.out.println (b.in ().read ());      // print multiplexed data
             }
           }
         }
       }
     ).run ();

   }

 }


Author:

P.H. Welch and P.D. Austin

See Also:

DemultiplexInt, ParaplexInt, DeparaplexInt, PlexInt

Constructor Summary

MultiplexInt(AltingChannelInputInt[] in, ChannelOutputInt out)
Construct a new MultiplexInt process with the input Channel in and the output Channels out.

Method Summary

void	run() The main body of this process.

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Constructor Detail

MultiplexInt

public MultiplexInt(AltingChannelInputInt[] in,
                    ChannelOutputInt out)

Construct a new MultiplexInt process with the input Channel in and the output Channels out. The ordering of the Channels in the in array make no difference to the functionality of this process -- the multiplexing services all channels fairly.

Parameters:

in - the input channels

out - the output channel

Method Detail

run

public void run()

The main body of this process.

Specified by:

run in interface CSProcess
