CSP for Java
(JCSP) 1.1-rc4

Class MultInt

  extended by org.jcsp.plugNplay.ints.MultInt
All Implemented Interfaces:

public final class MultInt
extends Object
implements CSProcess

Scales an integer stream.

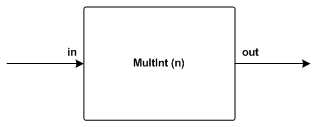

Process Diagram


MultInt multiplies each integer that flows through it by the multiplier with which it is configured.

Channel Protocols

Input Channels
in int All channels in this package carry integers.
Output Channels
out int All channels in this package carry integers.


The following example shows how to use the MultInt process in a small program. The program also uses some of the other plugNplay processes. The program generates a sequence of numbers, multiplies them by 42 and prints this on the screen.
 import org.jcsp.lang.*;
 import org.jcsp.plugNplay.ints.*;
 public class MultIntExample {
   public static void main (String[] argv) {
     final One2OneChannelInt a = Channel.one2oneInt ();
     final One2OneChannelInt b = Channel.one2oneInt ();
     new Parallel (
       new CSProcess[] {
         new NumbersInt (a.out ()),
         new MultInt (42, a.in (), b.out ()),
         new PrinterInt (b.in (), "--> ", "\n")
     ).run ();

P.H. Welch and P.D. Austin

Constructor Summary
MultInt(int n, ChannelInputInt in, ChannelOutputInt out)
          Construct a new MultInt process with the input Channel in and the output Channel out.
Method Summary
 void run()
          The main body of this process.
Methods inherited from class java.lang.Object
clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Constructor Detail


public MultInt(int n,
               ChannelInputInt in,
               ChannelOutputInt out)
Construct a new MultInt process with the input Channel in and the output Channel out.

n - the multiplier
in - the input channel
out - the output channel
Method Detail


public void run()
The main body of this process.

Specified by:
run in interface CSProcess
